Attaching The Mover To Your Pump

  • Heat Pump Ready

    Unboxed with pump feet ready

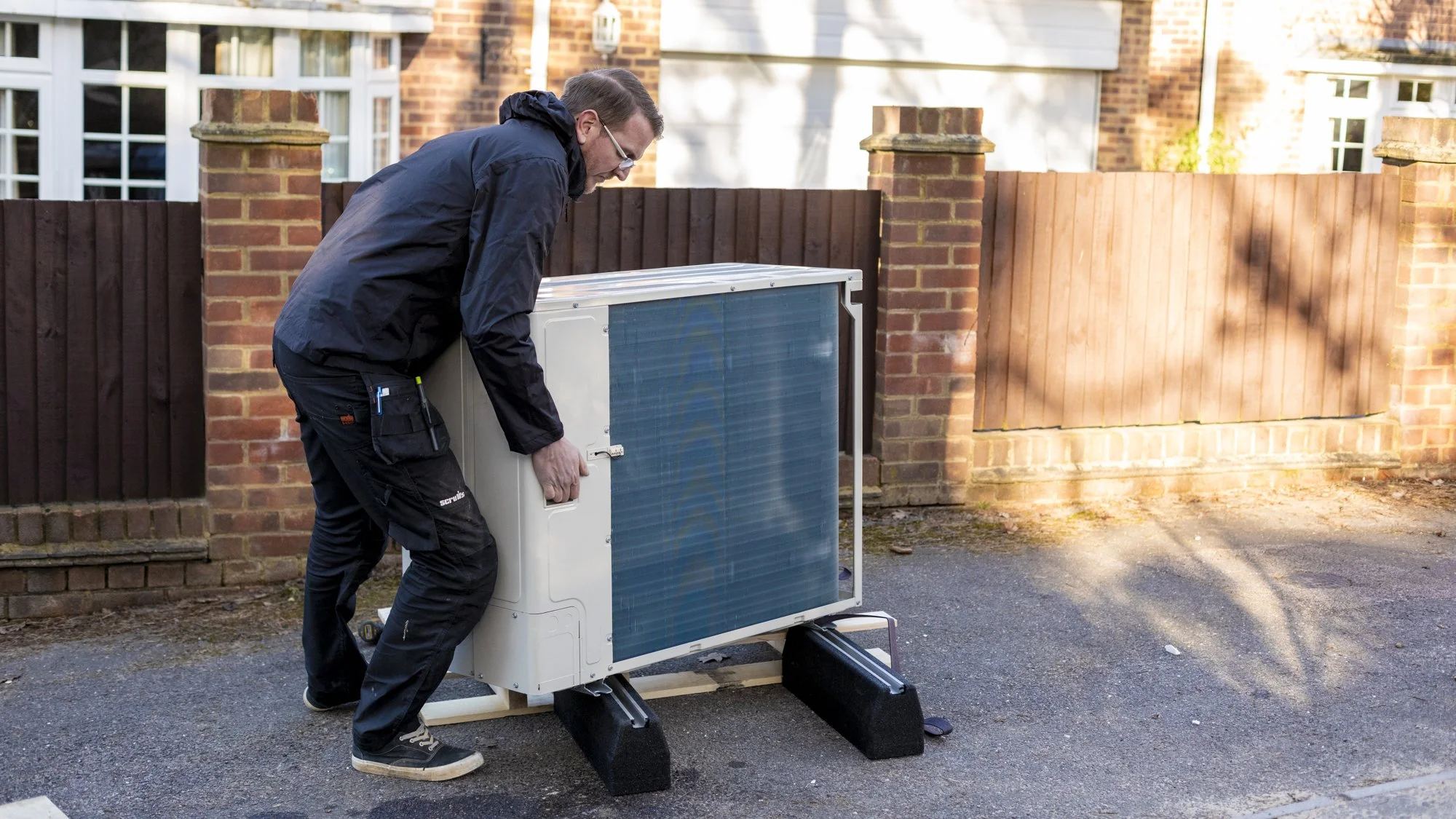

  • Shift and Lift Fan End

    Carefully slide the pump onto the pump feet.

  • Shift and Lift Pump End

    Carefully slide the pump onto the pump feet.

  • Bolt Fan End Foot

    Using bolts provided with the pump

  • Bolt Fan End Foot

    Using bolts provided with the pump

  • Attach The Pull Strap To Mover

    IMPORTANT: The Pull Strap cannot be added after the pump is fitted.

  • Slide the Mover Into Place

    If you need more height, place a block between the pump and the foot.

  • Position The Pump Foot

    Into the Mover Foot Recess

  • Bolt OPTION

    The Pump Foot can be bolted to the Mover if you do not want to use the straps provided. Bolt or Strap - only one option is needed.

  • Bolt OPTION

    The Pump Foot can be bolted to the Mover if you do not want to use the straps provided. Bolt or Strap - only one option is needed.

  • Strap OPTION

    Attach the Securing Strap and feed the strap over the pump

  • Attach The Ratchet Strap

    To the Mover

  • Tighten The Strap

    Just enough to stop the pump lifting up out of the Mover recess. NOTE: It doesn’t need to be over tightened, just enough to stop the pump lifting.

  • Tidy The Strap

    You don’t want a trip hazard.

  • Remove The Supporting Foot

    Lift the pump and remove the supporting foot.

  • You Are Ready To Pull The Pump

    Use the pull strap and handle provided.
